The Orient King Diver RA-AA0D02R1HB is a red-dial Weekly Auto Orient King Diver on a steel bracelet. The bezel insert in the photos is black, not red. “Black red” on the old title means a black minute ring and a red dial. It is not a Kamasu, not a Mako, and not a current-catalogue diver.

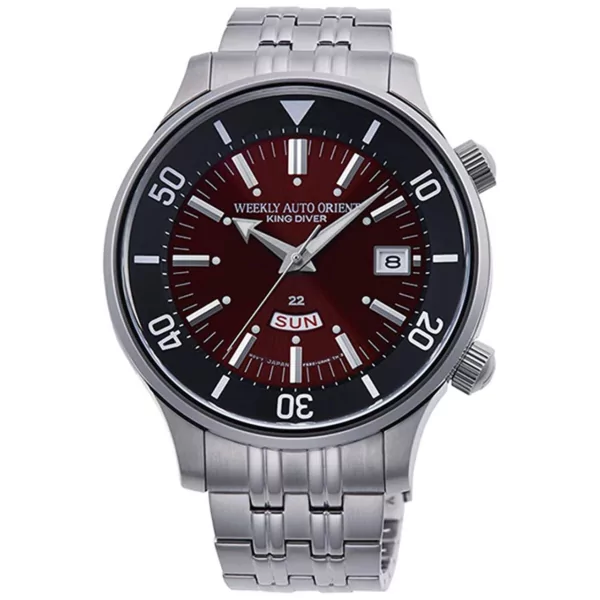

The dial is a red sunburst with applied bar indexes, an arrow hour hand, and the words Weekly Auto Orient King Diver. The date window is at 3. The day window is at 6, with 22 printed above it, matching the 22-jewel case-back engraving. That 22 is not a power-reserve hand. A black internal minute ring carries a triangle at 12 and white numerals at the ten-minute marks. It sits under the crystal. It is not an external dive bezel.
Case, calibre, and what the photos actually show
A retailer sheet for the same RA-AA0D case, the green sibling RA-AA0D03E, lists calibre F6922 with hacking and hand-winding, about 40 hours, mineral crystal, 43.8 mm wide without the crown, 14 mm thick, 20 mm lugs, 50.5 mm lug-to-lug, and 200 metres. The case back in this gallery is engraved F6922, 22 jewels, Weekly Auto Orient, King Diver, Epson, stainless steel, and water resistant 20 bar. That agrees with the 200-metre figure. Orient’s own current sheet for this reference was not available, so the size figures below come from that shared-case retailer sheet.
A 43 mm or 22 mm figure that still appears in some size filters is not the measurement used here. The lug width on the shared-case sheet is 20 mm.
The crown is at 3, with a second pusher at 4 for the day. The photos do not prove a screw-down crown, so this page does not claim one. The bracelet is stainless steel with a fold-over clasp stamped Orient. One angled frame carries a retailer watermark. One gallery frame shows a see-through case back and an open clasp. Another frame is a solid engraved King Diver case back. The sibling sheet lists a solid case back. This page follows that sheet and does not treat the see-through frame as the back of the unit supplied.
Specifications
- Reference: RA-AA0D02R1HB. Catalogues also use the shorter code RA-AA0D02R.
- Collection: Weekly Auto Orient King Diver reissue. Not a Kamasu and not a Mako.
- Movement: Orient calibre F6922. Automatic, hand-winding, hacking, 22 jewels, about 40 hours, from the case-back engraving and the shared RA-AA0D sheet.
- Case: stainless steel, 43.8 mm wide without the crown, 14 mm thick, 50.5 mm lug-to-lug on that sheet.
- Lugs: 20 mm on that sheet.
- Crystal: mineral.
- Bezel: internal black minute ring. Not an external rotating dive bezel, and not a red insert.
- Dial: red sunburst, bar indexes, date at 3, day at 6, 22 printed above the day window.
- Bracelet: stainless steel, fold-over clasp stamped Orient.
- Case back: solid engraved King Diver back in the matching frame. A see-through frame in the same gallery is not treated as this unit.
- Water resistance: 200 metres / 20 bar, engraved on the case back. Not stated here as an ISO diver rating.
- Limited edition: not claimed. No piece count is published on the sources used here.
Who it suits
Buy this if you want the King Diver reissue specifically: a red dial, a day and date, and a steel bracelet, and you understand the minute ring is internal. It is a poor substitute for a Kamasu if you want a sapphire crystal and a modern external bezel. It is currently out of stock.
Shop other Orient divers or the wider Orient range.
Frequently asked questions
Is the RA-AA0D02R1HB a Kamasu?
No. It is the Weekly Auto Orient King Diver reissue. The dial text, the internal minute ring, and the day window at 6 are not the Kamasu layout.
What movement does the King Diver RA-AA0D02R1HB use?
Calibre F6922. The case back is engraved F6922 and 22 jewels. The shared RA-AA0D sheet lists hacking, hand-winding, and about 40 hours.
How big is the RA-AA0D02R1HB?
The shared-case retailer sheet lists 43.8 mm wide without the crown, 14 mm thick, 20 mm lugs, and 50.5 mm lug-to-lug. A 43 mm figure in some filters is the rounded version of that width.
Is the bezel red?
No. The dial is red. The minute ring in the photos is black, with a triangle at 12. It is an internal ring, not an external dive bezel.
How water resistant is this King Diver?
The case back is engraved water resistant 20 bar, which is 200 metres. This page does not add an ISO diver claim on top of that engraving.
Does it have an exhibition case back?
The matching King Diver frame is a solid engraved back. Another gallery frame shows a see-through back and an open clasp. That frame is not used as proof of the back on the unit supplied. The sibling sheet also lists a solid case back.
Where can I buy the RA-AA0D02R1HB in Australia?
This is the Chronospride listing. It is currently out of stock. A restock would be this red-dial King Diver, not a different colourway from the same family.
Authentic stock, inspected before dispatch. Free shipping Australia-wide on eligible orders. Covered by Chronospride’s 12 months warranty, handled by our team. See our authenticity and warranty page.
Japanese brand. This is an earlier reference, not current Orient production. The case back of the unit supplied shows where it was made. Listing photos may show an earlier marking.
| Brand | Orient |
|---|---|
| MPN | RA-AA0D02R1HB |
| Gender | Men's |
| Band-Material | Stainless Steel |
| Case-Material | Stainless Steel |
| Movement | Automatic |
| Case-Size | 43mm |
| Band-Width | 22mm |
| Band-Colour | Silver |
